TRADESTATION: SWISS ARMY KNIFE INDICATOR (SWAK)
John Ehlers' article in this issue, "Swiss Army Knife Indicator," presents
a generalized filtering algorithm capable of creating simple averages,
exponential averages, and momentum measurements. Late in the article, Ehlers
suggests creating an MACD-style indicator from two-band pass filters. The
following EasyLanguage code performs this task by converting the EasyLanguage
code published in the article into a function called "SwakofFilters." The
function is then called from two indicators: "Swak_2Lines," which plots
two filtered price series, and "Swak_Diff," which plots the filtered difference
between two filtered price series. Finally, here is a strategy that trades
like an MACD strategy would, except that it uses the crossing of SWAK lines
to generate trades.

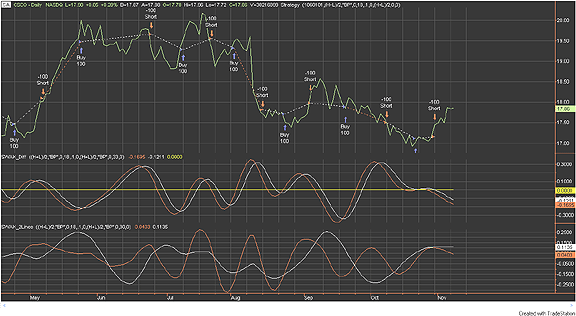

FIGURE 1: TRADESTATION, SWISS ARMY KNIFE INDICATOR. The subgraph 1 at the top of the chart shows CISCO daily line-on-close bars. The trades shown are generated by the strategy "SWAK_ConvDiv." Directly beneath the price bars is the "SWAK_Diff" indicator (in subgraph 2). Subgraph 3 shows the filtered price series calculated by the indicator "SWAK_2Lines."
To download this code, search for the file "Swak.eld" at the TradeStation
Support Center at www.TradeStation.com. Search for the file in the "TradeStation
and EasyLanguage Support" discussion forum. The original code by John Ehlers
is included in the ELD file as the indicator "EhlersSwak."
Function Name: Swiss Army Knife Indicator Short Name: SWAK Inputs: Price, c0, c1, N, b0, b1, b2, a1, a2, Initial Value If (GT (Bar# (), N), Add (Mult (c0, Add (Mult (b0, Price), Add (Mult (b1, Lag (Price, 1)), Mult (b2, Lag (Price, 2))))), Add (Mult (a1, Prev (1)), Sub (Mult (a2, Prev (2)), Mult (c1, Lag (Price, N))))), Initial Value) Function Name: SWAK Alpha for One-Pole Filter Short Name: SWAK_OnePoleAlpha Inputs: Period Div (Add (Cos (DtoR (Div (360,Period))),Sub (Sin (DtoR (Div (360,Period))),1)),Cos (DtoR (Div (360,Period)))) Function Name: SWAK Exponential Moving Average Short Name: SWAK_EMA Inputs: Price, Period SWAK (Price,1,0,0,SWAK_OnePoleAlpha (Period),0,0,Sub (1,SWAK_OnePoleAlpha (Period)),0,Price) Function Name: SWAK Simple Moving Average Short Name: SWAK_SMA Inputs: Price, Period SWAK (Price,1,Div (1,Period),Period,Div (1,Period),0,0,1,0,Price) Function Name: SWAK Beta for Two-Pole Filter Short Name: SWAK_TwoPoleBeta Inputs: Period Mult (2.415, Sub (1, Cos (DtoR (Div (360, Period))))) Function Name: SWAK Alpha for Two-Pole Filter Short Name: SWAK_TwoPoleAlpha Inputs: Period Sub (Sqrt (Add (Pow (SWAK_TwoPoleBeta (Period),2),Mult (2,SWAK_TwoPoleBeta (Period)))), SWAK_TwoPoleBeta (Period)) Function Name: SWAK Two-Pole Gaussian Filter Short Name: SWAK_Gauss Inputs: Price, Period SWAK (Price,Pow (SWAK_TwoPoleAlpha (Period),2),0,0,1,0,0,Mult (2,Sub (1,SWAK_TwoPoleAlpha (Period))),Negate (Pow (Sub (1,SWAK_TwoPoleAlpha (Period)),2)),Price) Function Name: SWAK Two-Pole Butterworth Filter Short Name: SWAK_Butter Inputs: Price, Period SWAK (Price,Div (Pow (SWAK_TwoPoleAlpha (Period),2),4),0,0,1,2,1,0,0,Price) Function Name: SWAK High-Pass Filter Short Name: SWAK_HP Inputs: Price, Period SWAK (Price,Sub (1,SWAK_OnePoleAlpha (Period)),0,0,1,-1,0,Sub (1,SWAK_OnePoleAlpha (Period)),0,0) Function Name: SWAK Two-Pole High-Pass Filter Short Name: SWAK_2PHP Inputs: Price, Period SWAK (Price,Pow (Sub (1,Div (SWAK_TwoPoleAlpha (Period),2)),2),0,0,1,-2,1,Mult (2,Sub (1, SWAK_TwoPoleAlpha (Period))),Negate (Pow (Sub (1,SWAK_TwoPoleAlpha (Period)),2)),0) Function Name: SWAK Beta for Bandpass Filter Short Name: SWAK_BandpassBeta Inputs: Period Cos (DtoR (Div (360,Period))) Function Name: SWAK Gamma for Bandpass Filter Short Name: SWAK_BandpassGamma Inputs: Period, delta Div (1,Cos (DtoR (Div (Mult (720,delta),Period))) Function Name: SWAK Alpha for Bandpass Filter Short Name: SWAK_BandpassAlpha Inputs: Period, delta Sub (SWAK_BandpassGamma (Period,delta),Sqrt (Sub (Pow (SWAK_BandpassGamma (Period,delta),2),1))) Function Name: SWAK Bandpass Filter Short Name: SWAK_BP Inputs: Price, Period, delta SWAK (Price,Div (Sub (1,SWAK_BandpassAlpha (Period,delta)),2),0,0,1,0,-1,Mult (SWAK_BandpassBeta (Period), Add (1,SWAK_BandpassAlpha (Period,delta))), Negate (SWAK_BandpassAlpha (Period, delta)), Price) Function Name: SWAK Band_Stop Filter Short Name: SWAK_BS Inputs: Price, Period, delta SWAK (Price,Div (Sub (1,SWAK_BandpassAlpha (Period,delta)),2),0,0,1,Mult (-2,SWAK_BandpassBeta (Period)),1,Mult (SWAK_BandpassBeta (Period),Add (1,SWAK_BandpassAlpha (Period,delta))), Negate (SWAK_BandpassAlpha (Period,delta)),Price)
--Mark MillsGO BACK
TradeStation Securities, Inc.
A subsidiary of TradeStation Group, Inc.
www.TradeStationWorld.com
WEALTH-LAB: CHIRPED SINE WAVE
We'll keep our Traders' Tip simple this month and recreate the chirped sine wave so that you too can easily visualize your filters on a theoretical periodic signal. You'll find the SWAK indicator in the Wealth-Lab Code Library, ready to use in the battle between the bulls and the bears!
See Figure 2 for an example.

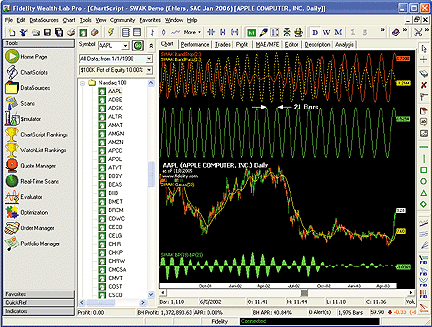

FIGURE 2: WEALTH-LAB, CHIRPED SINE WAVE. Here's a sample implementation of the chirped sine wave in Wealth-Lab.
WealthScript code:
{$I 'SWAK'}
var Bar, CSW, CSWPane, SPane, OPane, bc, n, hBS, hBP, hGauss, hDiff: integer;
var t, StartFrq, Rate: float;
SetColorScheme( #Green, #Red, #Blue, #Black, #Black, #White );
bc := BarCount;
StartFrq := Trunc( bc / 100 );
Rate := Trunc( bc / 25 );
{* Create and plot a chirped sine wave, decreasing frequency *}
CSW := CreateSeries;
n := bc - 1;
for Bar := 0 to bc - 1 do
begin
t := Bar / bc;
@CSW[n] := Sin( 360 * ( StartFrq + t * Rate ) * t );
Dec( n );
end;
CSWPane := CreatePane( 100, true, true );
PlotSeriesLabel( CSW, CSWPane, #Lime, #Thin, 'Chirped Sine' );
{* Run the Chirped signal through the filters and plot *}
SPane := CreatePane( 100, true, true );
hBS := SWAKSeries( CSW, 21, 'BS' );
PlotSeriesLabel( hBS, SPane, #Red, #Thin, 'SWAK BandStop(21)' );
hBP := SWAKSeries( CSW, 21, 'BP' );
PlotSeriesLabel( hBP, SPane, #Yellow, #Dotted, 'SWAK BandPass(21)' );
{* Predictive oscillator *}
OPane := CreatePane( 100, false, false );
hDiff := SubtractSeries( SWAKSeries( #Close, 19, 'BP' ), SWAKSeries( #Close, 21, 'BP' ) );
PlotSeriesLabel( hDiff, OPane, #Lime, #Histogram, 'SWAK BP(19)-BP(21)' );
{* Plot the SWAK Gaussian of the #Close series *}
hGauss := SWAKSeries( #Close, 50, 'Gauss' );
PlotSeriesLabel( hGauss, 0, #Yellow, #Thin, 'SWAK Gauss(50)' );
HideVolume;
--Robert SucherGO BACK
www.wealth-lab.com
AMIBROKER: SWISS ARMY KNIFE INDICATOR (SWAK)
In "Swiss Army Knife Indicator," John Ehlers presents an indicator that is based on the second-order infinite impulse response (IIR) filter. IIR filters are widely used in almost every digital signal processing application. In the code listing given here, we have presented AmiBroker's implementation of the SWAK indicator (second-order IIR filter). Included is some sample code that produces a point-change chart and IIR-filtered output. After applying the indicator, the parameter window (Figure 3) can be used to control the type of filter used and its parameters, such as averaging period.
FIGURE 3: AMIBROKER, SWISS ARMY KNIFE INDICATOR. This AmiBroker screenshot shows a daily candlestick chart of MSFT (upper pane) and point-change plot with an IIR-based average. The parameter window shown in the upper part allows you to modify the averaging period in real time.
SetBarsRequired(100000,0);
PI = 3.1415926;
function Poly2ndOrder( input, N, c0, c1, b0, b1, b2, a1, a2 )
{
output = input; // initialize for N first bars
for( i = Max( N, 2 ); i < BarCount; i++ )
{
output[ i ] = c0[ i ] * ( b0 * input[ i ] +
b1 * input[ i - 1 ] +
b2 * input[ i - 2 ] ) +
a1 * output[ i - 1 ] +
a2 * output[ i - 2 ] -
c1 * input[ i - N ];
}
return output;
}
function SWAK( input, type, Period, delta )
{
N = 0;
an = 2 * PI / Period;
c0 = b0 = 1;
c1 = b1 = b2 = a1 = a2 = gamma1 = 0;
beta1 = 2.415 * ( 1- cos( an ) );
alpha = -beta1 + sqrt( beta1 ^ 2 + 2 * beta1 );
alpha1 = ( cos( an ) + sin( an ) - 1 )/cos( an );
if( type == "EMA" )
{
b0 = alpha1; a1 = 1 - alpha1;
}
if( type == "SMA" )
{
N = Period;
c1 = b0 = 1/N; a1 = 1;
}
if( type == "Gauss" )
{
c0 = alpha ^ 2;
a1 = 2 * ( 1- alpha ); a2 = -( 1 - alpha )*( 1 - alpha );
}
if( type == "Butter" )
{
c0 = ( alpha ^ 2 ) / 4;
a1 = 2 * ( 1- alpha ); a2 = -( 1 - alpha )*( 1 - alpha );
b1 = 2; b2 = 1;
}
if( type == "HP" )
{
c0 = 1 - alpha1 / 2;
b1 = -1;
a1 = 1 - alpha1;
}
if( type == "2PHP" )
{
c0 = ( 1 - alpha / 2 ) ^ 2;
b1 = -2; b2 = 1; a1 = 2 * ( 1 - alpha ); a2 = - ( 1 - alpha ) ^ 2;
}
if( type == "BP" OR type == "BS" )
{
beta1 = cos( 2 * PI / Period );
gamma1 = 1 / cos( 4 * PI * delta / Period );
alpha = gamma1 - sqrt( gamma1 ^ 2 - 1 );
a1 = beta1 * ( 1 + alpha );
a2 = - alpha;
if( type == "BP" )
{
c0 = ( 1 - alpha ) / 2;
b2 = -1;
}
else
{
c0 = ( 1 + alpha ) / 2;
b1 = - 2 * beta1;
b2 = -1;
}
}
return Poly2ndOrder( input, N, c0, c1, b0, b1, b2, a1, a2 );
}
// test code
P = C - C[ 0 ];
Plot( P, "Change", colorBlack );
type = ParamList("Type", "EMA|SMA|Gauss|Butter|HP|2PHP|BP|BS" );
period = Param("Period", 20, 1, 100, 1 );
delta = Param("Delta", 0.1, 0, 1, 0.01 );
Plot( SWAK( P, type, period, delta), type +_PARAM_VALUES(), colorRed );
--Tomasz Janeczko, AmiBroker.comGO BACK
www.amibroker.com
eSIGNAL: SWISS ARMY KNIFE INDICATOR (SWAK)
For this month's article by John Ehlers, "Swiss Army Knife Indicator," we've provided the following formula for eSignal, "Swak.efs." The study plots the various indicators discussed in the article (Figure 4), according to the indicator selected under the Type parameter in the Edit Studies option. The study also has parameters for the price source (HL/2), N (0), period (20), and delta (0.1). To change the parameters, use the Edit Studies option of the Advanced Chart.
FIGURE 4: eSIGNAL, SWISS ARMY KNIFE INDICATOR. Here is a demonstration of the Swiss Army Knife indicator in eSignal.
/***************************************
Provided By : eSignal (c) Copyright 2005
Description: Swiss Army Knife - by John F. Ehlers
Version 1.0 11/08/2005
Notes:
January 2006 Issue of Stocks and Commodities Magazine
* Study requires version 7.9 or higher.
Formula Parameters: Defaults:
Price HL/2
[Open, High, Low, Close, HL/2, HLC/3, OHLC/4]
Type BP
[EMA, SMA, Gauss, Butter, HP, 2PHP, BP, BS]
N 0
Period 20
Delta .1
***************************************/
function preMain() {
setStudyTitle("SWAK ");
//setShowTitleParameters(false);
setCursorLabelName("Filt", 0);
setDefaultBarThickness(2, 0);
var fp1 = new FunctionParameter("sPrice", FunctionParameter.STRING);
fp1.setName("Price");
fp1.addOption("Open");
fp1.addOption("High");
fp1.addOption("Low");
fp1.addOption("Close");
fp1.addOption("HL/2");
fp1.addOption("HLC/3");
fp1.addOption("OHLC/4");
fp1.setDefault("HL/2");
var fp2 = new FunctionParameter("sType", FunctionParameter.STRING);
fp2.setName("Type");
fp2.addOption("EMA");
fp2.addOption("SMA");
fp2.addOption("Gauss");
fp2.addOption("Butter");
fp2.addOption("HP");
fp2.addOption("2PHP");
fp2.addOption("BP");
fp2.addOption("BS");
fp2.setDefault("BP");
var fp3 = new FunctionParameter("nN", FunctionParameter.NUMBER);
fp3.setName("N");
fp3.setLowerLimit(0);
fp3.setDefault(0);
var fp4 = new FunctionParameter("nPeriod", FunctionParameter.NUMBER);
fp4.setName("Period");
fp4.setLowerLimit(0);
fp4.setDefault(20);
var fp5 = new FunctionParameter("nDelta", FunctionParameter.NUMBER);
fp5.setName("Delta");
fp5.setDefault(.1);
}
var bVersion = null;
var nBarCount = 0;
var bInit = false;
var Filt = null;
var Filt_0 = null;
var Filt_1 = null;
var Filt_2 = null;
var xPrice = null;
var c0 = 1;
var c1 = 0;
var b0 = 1;
var b1 = 0;
var b2 = 0;
var a1 = 0;
var a2 = 0;
var alpha = 0;
var beta1 = 0;
var gamma1 = 0;
var delta1 = .1
function main(sPrice, sType, nN, nPeriod, nDelta) {
if (bVersion == null) bVersion = verify();
if (bVersion == false) return;
if (bInit == false) {
switch (sPrice) {
case "Open" :
xPrice = open();
break;
case "High" :
xPrice = high();
break;
case "Low" :
xPrice = low();
break;
case "Close" :
xPrice = close();
break;
case "HL/2" :
xPrice = hl2();
break;
case "HLC/3" :
xPrice = hlc3();
break;
case "OHLC/4" :
xPrice = ohlc4();
break;
default: xPrice = hl2();
}
delta1 = nDelta;
bInit = true;
}
if (getCurrentBarCount() > nN) {
Filt = efsInternal("calcFilt", sType, nPeriod, nN, getSeries(xPrice));
return Filt.getValue(0);
} else {
return;
}
}
/***** Support Functions *****/
function calcFilt(type, Period, N, Price) {
if (getBarState() == BARSTATE_NEWBAR) {
nBarCount++;
Filt_2 = Filt_1;
Filt_1 = Filt_0;
}
switch (type) {
case "EMA" :
if (nBarCount <= N) {
Filt_0 = Price.getValue(0);
return Filt_0;
}
alpha = (Math.cos((2*Math.PI)/Period) + Math.sin((2*Math.PI)/Period)
- 1) / Math.cos((2*Math.PI)/Period);
b0 = alpha;
a1 = 1 - alpha;
break;
case "SMA" :
if (nBarCount <= N) {
Filt_0 = Price.getValue(0);
return Filt_0;
}
if (N == 0) N = 1;
c0 = 1;
c1 = 1 / N;
b0 = 1 / N;
b1 = 0;
b2 = 0;
a1 = 1;
a2 = 0;
break;
case "Gauss" :
if (nBarCount <= N) {
Filt_0 = Price.getValue(0);
return Filt_0;
}
beta1 = 2.415*(1 - Math.cos((2*Math.PI) / Period));
alpha = -beta1 + Math.sqrt(beta1*beta1 + 2*beta1);
c0 = alpha*alpha;
a1 = 2*(1 - alpha);
a2 = -(1 - alpha)*(1 - alpha);
break;
case "Butter" :
if (nBarCount <= N) {
Filt_0 = Price.getValue(0);
return Filt_0;
}
beta1 = 2.415*(1 - Math.cos((2*Math.PI) / Period));
alpha = -beta1 + Math.sqrt(beta1*beta1 + 2*beta1);
c0 = alpha*alpha / 4;
b1 = 2;
b2 = 1;
break;
case "HP" :
if (nBarCount <= N) {
Filt_0 = 0;
return Filt_0;
}
alpha = (Math.cos((2*Math.PI)/Period) + Math.sin((2*Math.PI)/Period)
- 1) / Math.cos((2*Math.PI)/Period);
c0 = 1 - alpha / 2;
b1 = -1;
a1 = 1 - alpha;
break;
case "2PHP" :
if (nBarCount <= N) {
Filt_0 = 0;
return Filt_0;
}
beta1 = 2.415*(1 - Math.cos((2*Math.PI) / Period));
alpha = -beta1 + Math.sqrt(beta1*beta1 + 2*beta1);
c0 = (1 - alpha / 2)*(1 - alpha / 2);
b1 = -2;
b2 = 1;
a1 = 2*(1 - alpha);
a2 = -(1 - alpha)*(1 - alpha);
break;
case "BP" :
if (nBarCount <= N+4) {
Filt_0 = 0;
return Filt_0;
}
beta1 = Math.cos((2*Math.PI) / Period);
gamma1 = 1 / Math.cos((((2*Math.PI)+(2*Math.PI))*delta1) / Period);
alpha = gamma1 - Math.sqrt(gamma1*gamma1 - 1);
c0 = (1 - alpha) / 2;
b2 = -1;
a1 = beta1*(1 + alpha);
a2 = -alpha;
break;
case "BS" :
if (nBarCount <= N+4) {
Filt_0 = 0;
return Filt_0;
}
beta1 = Math.cos((2*Math.PI) / Period);
gamma1 = 1 / Math.cos((((2*Math.PI)+(2*Math.PI))*delta1) / Period);
alpha = gamma1 - Math.sqrt(gamma1*gamma1 - 1);
c0 = (1 + alpha) / 2;
b1 = -2*beta1;
b2 = 1;
a1 = beta1*(1 + alpha);
a2 = -alpha;
break;
}
Filt_0 = c0*(b0*Price.getValue(0) + b1*Price.getValue(-1) + b2*Price.getValue(-2))
+ a1*Filt_1 + a2*Filt_2 - c1*Price.getValue(-N);
return Filt_0;
}
function verify() {
var b = false;
if (getBuildNumber() < 700) {
drawTextAbsolute(5, 35, "This study requires version 7.9 or later.", Color.white,
Color.blue, Text.RELATIVETOBOTTOM|Text.RELATIVETOLEFT|Text.BOLD|Text.LEFT, null,
13, "error");
drawTextAbsolute(5, 20, "Click HERE to
upgrade.@URL=https://www.esignal.com/download/default.asp", Color.white, Color.blue,
Text.RELATIVETOBOTTOM|Text.RELATIVETOLEFT|Text.BOLD|Text.LEFT, null, 13, "upgrade");
return b;
} else {
b = true;
}
return b;
}
--Jason Keck
eSignal, a division of Interactive Data Corp.
800 815-8256, www.esignalcentral.com
GO BACK
NEUROSHELL TRADER: SWISS ARMY KNIFE INDICATOR (SWAK)
The Swiss Army Knife indicator presented by John Ehlers in this issue can be easily implemented in NeuroShell Trader using NeuroShell Trader's ability to call external dynamic linked libraries (DLL). Dynamic linked libraries can be written in C, C++, Power Basic, IBasic, and Delphi.
After moving the EasyLanguage code given in the article to your preferred
compiler and creating a DLL you can insert the resulting Swiss Army custom
indicator as follows:
1. Select "New Indicator ..." from the Insert menu.
2. Select the Custom Indicator category.
3. Select the "Swiss Army Knife Indicator."
4. Select the parameters as you desire.
5. Select the Finished button.
If you decide to use the Swiss Army Knife indicator in a prediction
or a trading strategy, the parameters can be optimized by the Genetic Algorithm
built into NeuroShell Trader Professional. A sample chart is shown in Figure
5.

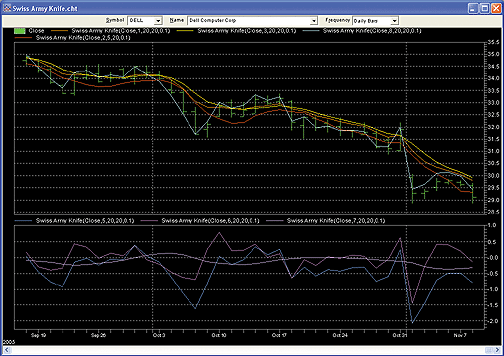

FIGURE 5: NeuroShell, SWISS ARMY KNIFE INDICATOR. Here is a sample NeuroShell chart demonstrating the various responses available with the Swiss Army Knife indicator as described by John Ehlers in this issue.
Users of NeuroShell Trader can go to the STOCKS & COMMODITIES
section of the NeuroShell Trader free technical support website at www.NeuroShell.com
to download a copy of the C code and corresponding DLL, along with a copy
of the chart that includes the Swiss Army Knife indicator (no programming
required).
It should be noted that John Ehlers's Mesa cycle indicators and cybernetic analysis indicators are also available as add-ons to NeuroShell Trader. For more information on these add-ons or on NeuroShell Trader, visit www.NeuroShell.com.
--Marge Sherald, Ward Systems Group, Inc.GO BACK
301 662-7950, sales@wardsystems.com
www.neuroshell.com
NEOTICKER: SWISS ARMY KNIFE INDICATOR (SWAK)
The indicator presented in the article "Swiss Army Knife Indicator" by John Ehlers can be implemented in NeoTicker using our formula language. The name of the indicator is "Tasc Swiss Army Knife" (Listing 1). It has five parameters:
Price--Formula parameter; generate average price for price calculation
Type--String parameter; selection for type of transformation to apply
N--Real parameter
Period--Integer parameter greater than zero
Delta1--Real parameter
The first part of the code has assigned to it a list of constant values. These constants will make rest of the code more readable.
The first parameter is used in the fml indicator call. This call produces an average price series. The second parameter type is converted to constant values from the constant assignment part. The next three parameters are assigned to named variables. These assignments are an effort to make the code more readable.
The calculator for c0, c1, b0, b1, b2, a1, and a2 is done according to the type of transformation that is chosen. Then "Flit" is calculated according to the source shown in the article.
This indicator, when applied to a data series, will return a transformation result (Figure 6).

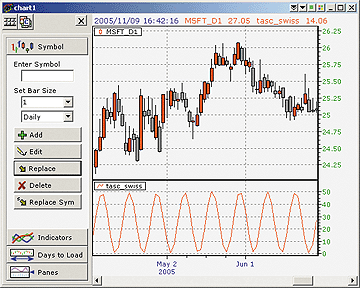

FIGURE 6: NEOTICKER, SWISS ARMY KNIFE INDICATOR. Applying the indicator to a data series in NeoTicker will return a transformation result.
A downloadable version of this indicator will be available at the
NeoTicker Yahoo! User Group.
'Constant
$EMA:=1;
$SMA:=2;
$Gauss:=3;
$Butter:=4;
$HP:=5;
$2PHP:=6;
$BP:=7;
$BS:=8;
'Converting Parameter Values
myPrice := fml(data1, param1);
$Type := choose(paramis(2, "EMA"),$EMA,paramis(2, "SMA"),$SMA,
paramis(2, "Gauss"),$Gauss,paramis(2, "Butter"),$Butter,
paramis(2, "HP"),$HP,paramis(2, "2PHP"),$2PHP,
paramis(2, "BP"),$BP,paramis(2, "BS"),$BS,0);
$N := param3;
$myPeriod := param4;
$delta := param5;
'assignment calculation values
$gamma1 := if($Type=$BP or $Type=$BS,
1/cos(720*$delta1/$myPeriod), 0);
$beta1 := choose($Type=$Gauss or $Type=$Butter or $Type=$2PHP,
2.415*(1-cos(360/$myPeriod)),
$Type=$BP or $Type=$BS,
cos(360/$myPeriod), 0);
$alpha := choose($Type=$EMA or $Type=$HP,
(cos(360/$myPeriod)+sin(360/$myPeriod)-1)/cos(360/$myPeriod),
$Type=$Gauss or $Type=$Butter or $Type=$2PHP,
-1*$beta1+sqrt($beta1*$beta1+2*$beta1),
$Type=$BP or $Type=$BS,
$gamma1-sqrt($gamma1*$gamma1-1), 0);
$c0 := choose($Type=$Gauss, $alpha*$alpha,
$Type=$Butter, $alpha*$alpha/4,
$Type=$HP, 1-$alpha/2,
$Type=$2PHP, (1-$alpha/2)*(1-$alpha/2),
$Type=$BP, (1-$alpha)/2,
$Type=$BS, (1+$alpha)/2, 1);
$c1 := if($Type=$SMA,if($N=0, 0, 1/$N), 0);
$b0 := choose($Type=$EMA,$alpha,$Type=$SMA,if($N=0, 0, 1/$N),1);
$b1 := choose($Type=$Butter,2,$Type=$HP,-1,
$Type=$2PHP,-2,$Type=$BS,-2*$beta1,0);
$b2 := choose($Type=$Butter or $Type=$2PHP or $Type=$BS,1,
$Type=$BP,-1,0);
$a1 := choose($Type=$EMA or $Type=$HP,1-$alpha,
$Type=$SMA,1,
$Type=$2PHP or $Type=$Gauss,2*(1-$alpha),
$Type=$BP or $Type=$BS, $beta1*(1+$alpha),0);
$a2 := choose($Type=$Gauss or $Type=$2PHP,-1*(1-$alpha)*(1-$alpha),
$Type=$BP or $Type=$BS,-1*$alpha,0);
Flit := if(data1.barsnum(0)<=$N,
if($Type=$HP or $Type=$2PHP,0,myPrice),
$c0*($b0*myPrice+$b1*myPrice(1)+$b2*myPrice(2))+
$a1*Flit(1)+$a2*Flit(2)-$c1*myPrice($N));
plot1 := Flit;
--Kenneth Yuen, TickQuest Inc.GO BACK
www.tickquest.com
TRADING SOLUTIONS: SWISS ARMY KNIFE INDICATOR (SWAK)
In "Swiss Army Knife Indicator" in this issue, John Ehlers provides a general parameterized indicator that can replicate the behaviors of many different kinds of filters.
These functions can be entered into TradingSolutions as follows. These
functions are also available as a function file that can be downloaded
from the TradingSolutions website (www.tradingsolutions.com) in the Solution
Library section. As with many indicators, these functions could make good
inputs to neural network predictions.
Function Name: Swiss Army Knife Indicator Short Name: SWAK Inputs: Price, c0, c1, N, b0, b1, b2, a1, a2, Initial Value If (GT (Bar# (), N), Add (Mult (c0, Add (Mult (b0, Price), Add (Mult (b1, Lag (Price, 1)), Mult (b2, Lag (Price, 2))))), Add (Mult (a1, Prev (1)), Sub (Mult (a2, Prev (2)), Mult (c1, Lag (Price, N))))), Initial Value) Here is an example of implementing an Ema using Swak: Function Name: SWAK Alpha for One-Pole Filter Short Name: SWAK_OnePoleAlpha Inputs: Period Div (Add (Cos (DtoR (Div (360, Period))), Sub (Sin (DtoR (Div (360,Period))), 1)), Cos (DtoR (Div (360,Period)))) Function Name: SWAK Exponential Moving Average Short Name: SWAK_EMA Inputs: Price, Period SWAK (Price,1,0,0,SWAK_OnePoleAlpha (Period),0,0,Sub (1,SWAK_OnePoleAlpha (Period)),0,Price)
Additional examples of implementing indicators using SWAK can be
found at the TradingSolutions website (www.tradingsolutions.com) in the
Solution Library section or at our website at Traders.com.
--Gary GeniesseGO BACK
NeuroDimension, Inc.
800 634-3327, 352 377-5144
www.tradingsolutions.com
FINANCIAL DATA CALCULATOR: SWISS ARMY KNIFE INDICATOR (SWAK)
The article "Swiss Army Knife Indicator" by John Ehlers produces a general-purpose indicator that includes a number of indicator types. All of these types, and many more, are special cases of the FDC filter function, available as a basic function in FDC Professional. The filter function will compute any filter that has a rational transfer function.
Let us rewrite the SWAK transfer function as follows:
Output/Input = (b0 + b1Z-1 + b2Z-2 - bNZ-N )/(1 - a1Z-1 - a2Z-2)
where we have multiplied out and renamed the constants for simplicity.
Then, to compute the corresponding indicator with the filter function,
simply enter the following line:
'- bN b2 b1 b0 ; a2 a1' filter dataset
where actual numbers are substituted for the symbols. Note that
the order of the inputs is from past to future, and this is the reverse
of the order shown in the article. Notice also that the b's and a's are
separated by a semicolon, and the entire expression is enclosed in quotes.
Here, we illustrate the FDC code for the various special cases given
in the article. For clarity, we will choose actual numbers for the parameters.
You can then replace these numbers by any desired values.
1. Exponential moving average with alpha = 0.2: '.2;.8' filter dataset This is equivalent with the Fdc expression: .2 expave dataset or, to use the corresponding equivalent number of days (9): 9 expave dataset 2. Simple five-day moving average using the Ehlers method: Normally, this is produced in Fdc by the input: 5 movave dataset Ehlers's code used in the article would translate to: '-.2 0 0 0 .2;1' filter dataset
This will initialize the beginning output to dataset values, but
that will not produce the standard five-day moving average. This particular
example, unlike the others in the article, is quite sensitive to initial
conditions, and will not recover from an improper initial value. If the
initial value is changed by a constant, that constant will persist forever.
The outputs corresponding to different initial values will all have the
same shape, but will differ by constants. The proper initialization is
the ordinary average of the first three days' prices. In the filter function,
you can override default initial values by inserting another semicolon
followed by the desired numbers. In addition, you can use FDC expressions
instead of actual numbers. For example, the input:
'-.2 0 0 0 .2;1;(totave dataset first 5)' filter dataset
will reproduce the standard five-day moving average.
3. Two-pole Gaussian filter with alpha = 0.2 '04; -.64 1.6' filter dataset
In general, if alpha is assigned to the variable a, we could use
the expression:
'(a^2);(-(1-a)^2),(2*(1 - a))' filter dataset
The other examples can be similarly translated to FDC format by using the basic filter syntax expression shown at the beginning.
--Robert C. Busby, 856 857-9088GO BACK
Mathematical Investment Decisions Inc.
rbusby@mathinvestdecisions.com
www.financialdatacalculator.com
VT TRADER: SWISS ARMY KNIFE INDICATOR (SWAK)
John Ehlers's article in this issue, "Swiss Army Knife Indicator," introduces an indicator by the same name. The SWAK indicator is a unique indicator consisting of 10 different responses ranging from oscillators to smoothers to bandpass and band-stop filters.
We'll be offering the SWAK indicator as a downloadable .vtscr indicator
file in our user forums. The VTtrader code and instructions for creating
this indicator are as follows (each input variable has been parameterized
to allow customization):
1. Navigator Window>Tools>Indicator Builder>[New] button
2. In the Indicator Bookmark, type the following text for each field:
Name: Swiss Army Knife Indicator
Short Name: vt-SWAK
Label Mask: Swiss Army Knife Indicator (%Price%, %Period%, Delta: %_Delta%, Filter:
%FilterType:ls%)
Placement: New Frame
Inspect Alias: Swiss Army Knife Indicator
3. In the Input Bookmark, create the following variables:
[New] button... Name: Price , Display Name: Price , Type: price , Default: Median Price
[New] button... Name: Period , Display Name: Periods , Type: integer , Default: 20
[New] button... Name: _Delta , Display Name: Delta , Type: float , Default: 0.0100
[New] button... Name: FilterType , Display Name: Filter Type , Type: Enumeration ,
Default: click [...] button, [New] button, then create the following entries: Default,
EMA, SMA, Gauss, Butter, Smooth, HighPass, TwoPole_HighPass, Bandpass, Band_stop; then,
click [OK] button
Default: Bandpass (chosen from list created)
4. In the Output Bookmark, create the following variables:
[New] button...
Var Name: Filt_SWAK
Name: Filter
Line Color: dark blue
Line Width: slightly thicker
Line Type: solid line
5. In the Formula Bookmark, copy and paste the following formula:
{Provided By: Visual Trading Systems, LLC (c) Copyright 2006}
{Description: Swiss Army Knife Indicator by John F. Ehlers}
{Notes: January 2006 Issue - The MacGyver of Indicators - Swiss Army Knife Indicator}
{SWAK Version 1.0}
Num:= if(FilterType=2,
if(Period=0,1,Period), 0);
_Beta:= if(FilterType=3 or FilterType=4 OR FilterType=7, 2.415 * (1-Cos(360/Period)),
if(FilterType=8 or FilterType=9, Cos(360/Period),
0));
_Gamma:= if(FilterType=8 or FilterType=9, 1 / Cos(720 * _Delta / Period),
0);
Alpha:= if(FilterType=1 OR FilterType=6, (Cos(360/Period) + Sin(360/Period)-1)/Cos(360/Period),
if(FilterType=3 or FilterType=4 OR FilterType=7, -_Beta + Sqrt(_Beta * _Beta + 2 * _Beta),
if(FilterType=8 OR FilterType=9, _Gamma - Sqrt(_Gamma * _Gamma - 1),
0)));
c0:= if(FilterType=3, alpha * alpha,
if(FilterType=4, alpha * alpha / 4,
if(FilterType=5, 1/4,
if(FilterType=6 OR FilterType=8,(1 - alpha) / 2,
if(FilterType=7,(1 - alpha / 2) * (1 - alpha / 2),
if(FilterType=9,(1 + alpha) / 2,
1))))));
c1:= if(FilterType=2 OR FilterType=10, 1/Num, 0);
b0:= if(FilterType=1, Alpha ,
if(FilterType=2, 1/Num, 1));
b1:= if(FilterType=4 OR FilterType=5, 2,
if(FilterType=6, -1,
if(FilterType=7, -2,
if(FilterType=9, -2 * _Beta,
0))));
b2:= if(FilterType=4 OR FilterType=5 OR FilterType=7 OR FilterType=9, 1,
if(FilterType=8, -1,
0));
a1:= if(FilterType=1, 1 - alpha,
if(FilterType=2 OR FilterType=10, 1,
if(FilterType=3 OR FilterType=4 OR FilterType=7, 2 * (1 - alpha),
if(FilterType=8, _Beta * (1 - alpha),
if(FilterType=9, _Beta * (1 + alpha),
0)))));
a2:= if(FilterType=3 OR FilterType=4 OR FilterType=7 , -(1 - alpha) * (1 - alpha),
if(FilterType=5, -(1 - alpha) * (1 - alpha),
if(FilterType=8 OR FilterType=9, -alpha,
0)));
Filt:= if(prev=NULL, if(FilterType=6 OR FilterType=7, 0, Price),
c0 * (b0 * Price + b1 * ref(Price,-1) + b2 * ref(Price,-2)
+ a1 * PREV + a2 * ref(PREV,-1) - c1 * ref(Price,- Num)));
Filt_SWAK:= if(CUM(1)<=Period, NULL, Filt);
6. Click the "Save" icon to finish building the Swak indicator.
To attach the SWAK indicator to a chart, right-click with the mouse
within the chart window, select "Add Indicators," then "Swiss Army Knife
Indicator" from the list. Users will have the ability to customize the
parameters at this time. Once attached to the chart, the parameters can
be customized by right-clicking with the mouse over the displayed indicator
label and selecting "properties." Figure 7 shows a GBP/USD one-hour candlestick
chart in VTtrader with the Swiss Army Knife indicator applying a band-stop
filter to median price data.

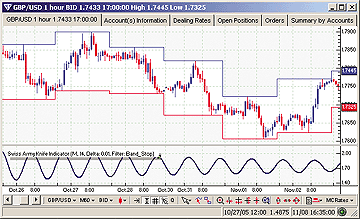

FIGURE 7: VT TRADER, SWISS ARMY KNIFE INDICATOR. Here is a sample VTtrader GBP/USD one-hour candlestick chart with the SWAK indicator applying a 14-period band-stop filter to median price data.
To learn more about VT Trader, visit www.cmsfx.com.
--Vadim Sologubov and Chris SkidmoreGO BACK
Visual Trading Systems, LLC (courtesy of CMS Forex)
(866) 51-CMSFX, trading@cmsfx.com
TRADECISION: SWISS ARMY KNIFE INDICATOR (SWAK)
In "Swiss Army Knife Indicator," John Ehlers illustrates digital filtering concepts. With the Tradecision Indicator Builder, you can easily code the SWAK indicator. Here, we provide the Improvian language code for the SWAK indicator. Please note: According to our understanding of the author's idea, in the case of using SMA as the filter type, you need to set Period equal to the simple moving average (SMA) period.
The syntax for the SWAK indicator is as follows:
{Provided by: Alyuda Research, Inc © 2005,
Version: Tradecision 2.0
Description: SWISS ARMY KNIFE INDICATOR by John F. Ehlers,
"Swiss Army Knife Indicator," January 2006 issue of
Technical Analysis of STOCKS & COMMODITIES magazine}
Input
Price: "Price", (High+Low)/2;
Type: "Type", "EMA";
N: "SMA Period", 0, 0;
Period: "Period", 20, 0;
delta1: "Delta", 0;
end_input
var
c0 := 1;
c1 := 0;
b0 := 1;
b1 := 0;
b2 := 0;
a1 := 0;
a2 := 0;
alpha := 0;
beta1 := 0;
gamma1 := 0;
end_var
[Editor's note: For the rest of the Tradecision code, please
see www.Traders.com or download the formula from the link given
below.]
Once you code this indicator, you can plot it on a chart using the "Insert Into Chart" command (see sample chart in Figure 8). While inserting it, you can change parameters for the indicator.

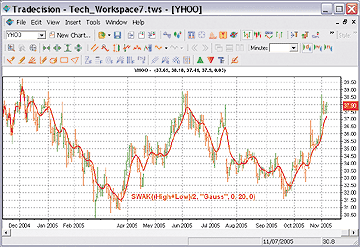

FIGURE 8: TRADECISION, SWISS ARMY KNIFE INDICATOR. Here is the SWAK indicator (the red line) with the period set at 20, Gauss type, on a daily chart of YHOO.You also can create the SWAK function that you can use as a trading rule or a neural model input. The SWAK function and indicator can be downloaded as "Swak.tfn" and "Swak.tnd" files from the Tradecision Knowledgebase at https://www.tradecision.com/knowledgebase.htm. You will need to import them in the Function and Indicator Builders.
--Alex Grechanowski
Alyuda Research, Inc.
347 416-6083, alex@alyuda.com
www.alyuda.com, www.tradecision.com
